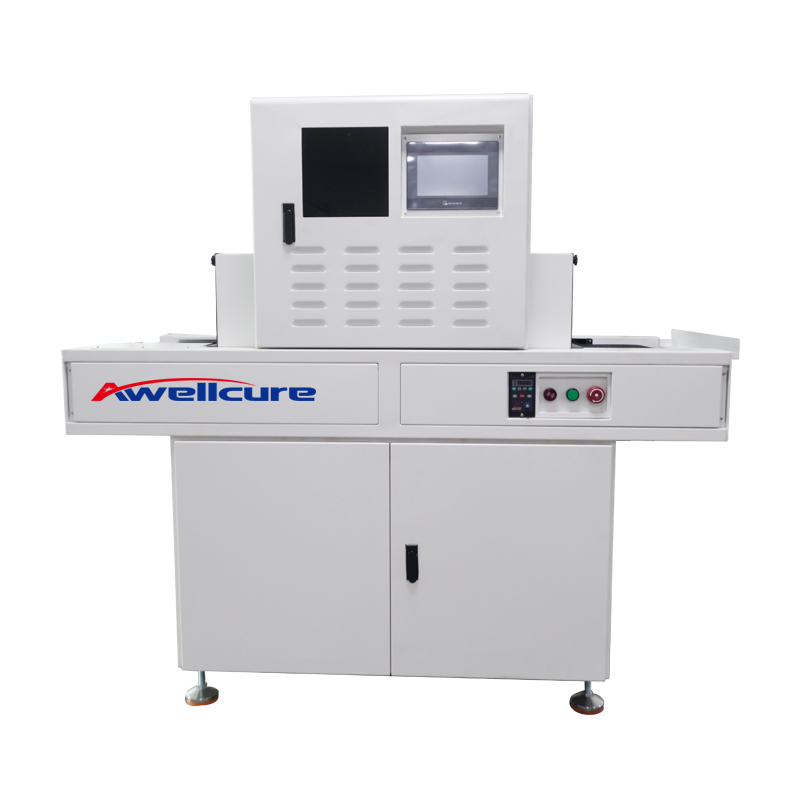

Automated assembly line UVLED curing oven tunnel type uv curing machine
UV LED conveyor floor system is a type of automated equipment used to cure or dry materials like inks, coatings, or adhesives using ultraviolet (UV) light emitted from LED arrays. These systems are designed with a conveyor belt that moves materials under the UV light source, providing consistent and efficient curing. They are commonly used in various industries for applications such as printing, packaging, and electronics manufacturing.
Specification Parameter
Model | LD1200300 | LD1500500 | LD2000-500 |
UV machine external dimensions (mm) | L1200-W650-H1400 | L1500-W750-H1500 | L2000-W750-H1500 |
Conveyor Material | Sheet metal | ||
Mesh Belt Material/Dimensions (mm) | Teflon black/L1200*W350 | Teflon black/L1500*W500 | Teflon black/L2000*W500 |
Inlet For Material(mm) | Width 300,Height 20~210(Adjustable) | Width 400,Height 20~210(Adjustable) | Width 450,Height 20~210(Adjustable) |
Light Source Irradiation Height | 20mm~210mm(Adjustable Height) | ||
Transmission speed | 0.5-5m/min | ||
LED Head | 1pc(Multiple illumination led heads are optional ） | ||
Light output area(mm) | 200*300 | 200*400 | 200*500 |
Optical Power | 1.5w/cm^2 or Customized | ||
Wavelength(nm) | 365nm, 385nm, 395nm, 405nm | ||
Lamp bead brand | Seoul, Korea | ||
Heat Dissipation | Air-cooled | ||
Lamp Bead Life | ≥20000H | ||
Control mode | Touch screen operation control light source, conveyor line speed knob adjustable, photoelectric induction lighting (if the product is too low to sense, you need to set the always-on state) | ||
Power Supply Voltage | AC100V-AC240V (50/60HZ) | ||
Power Consumption | <2kw | ||
Net Weight | 160kg | ||
Ambient Temperature | -10℃ - 50℃ | ||
Relative Humidity | 25% - 80%RH | ||
Optional Items | Optical power and luminous head temperature are monitored online 24H, and the upper and lower limits of optical power can be set through the touch screen | ||
UVLED curing machine replaces traditional mercury lamps, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low
energy consumption, high efficiency, no infrared radiation, cold light source, suitable for the curing of various heat sensitive materials uv glue, infrared
transmission Intelligent control, start and stop control as needed.
