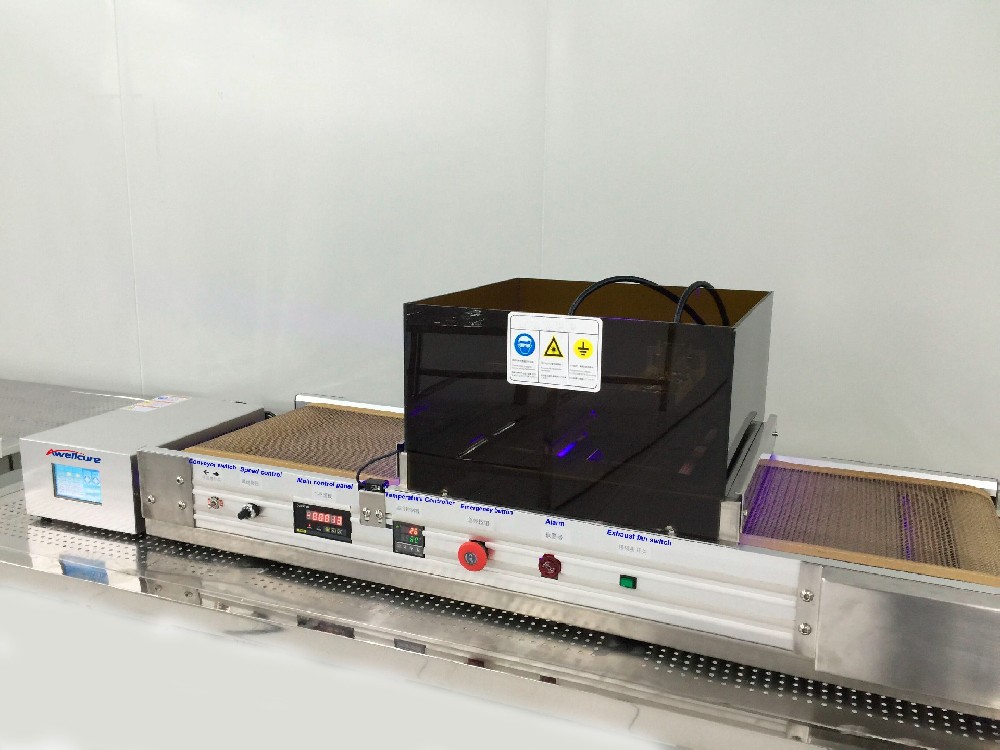

Product model: A-H350120
Type selection: Controller + Irradiator Head(Per controller can drive multi irradiator heads.)
system, conveyor belt and 1 or more UVLED irradiation heads. The UVLED irradiation head is integrated with imported high-intensity
ultraviolet LEDs. The UV spectrum wavelength is 365nm/385nm /395nm/405nm. The irradiation area of the curing light source is 100x100mm
/100x150mm/50x150mm etc.It adopts forced water cooling and supports external signal input and triggering. It can be equipped with a semi-automatic
or fully automatic production line.
Specification Parameter
|
Model |
A-H350120 |
|
UV machine external dimensions (mm) |
L1200-W410-H1530 |
|
Conveyor Material |
Sheet metal+Aluminum (Silver) |
|
Mesh Belt Material/Dimensions (mm) |
Teflon/L1200*W350mm |
|
Inlet For Material(mm) |
Width 400,Height 30~200(Adjustable) |
|
Transmission speed |
0-10m/min |
|
LED Head |
1pc(Multiple illumination led heads are optional ） |
|
Light output area(mm) |
100x100mm/100x150mm/50x150mm |
|
Emergency Stop Switch(Belt) |
Yes |
|
Wavelength(nm) |
365nm, 385nm, 395nm, 405nm |
|
Lamp bead brand |
Seoul, Korea |
|
Heat Dissipation |
Air-cooled |
|
Lamp Bead Life |
≥20000H |
|
Control mode |
Touch screen operation control light source, conveyor line speed knob adjustable, photoelectric induction lighting (if the product is too low to sense, you need to set the always-on state) |
|
Power Supply Voltage |
AC100V-AC240V (50/60HZ) |
|
Power Consumption |
<50W |
|
Net Weight/Conveyor |
10kg |
|
Ambient Temperature |
-10℃ - 50℃ |
|
Relative Humidity |
25% - 80%RH |
|
Main Functions |
1. Touch screen displays line speed 2. With exhaust system 3. Touch screen displays internal temperature and alarms 4. Light source height is adjustable 5. Photoelectric sensor installation height is adjustable to control light source lighting 6. With product material port limit block |
replaces traditional mercury lamps, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low
energy consumption, high efficiency, no infrared radiation, cold light source, suitable for the curing of various heat sensitive materials uv glue, infrared
transmission Intelligent control, start and stop control as needed.
