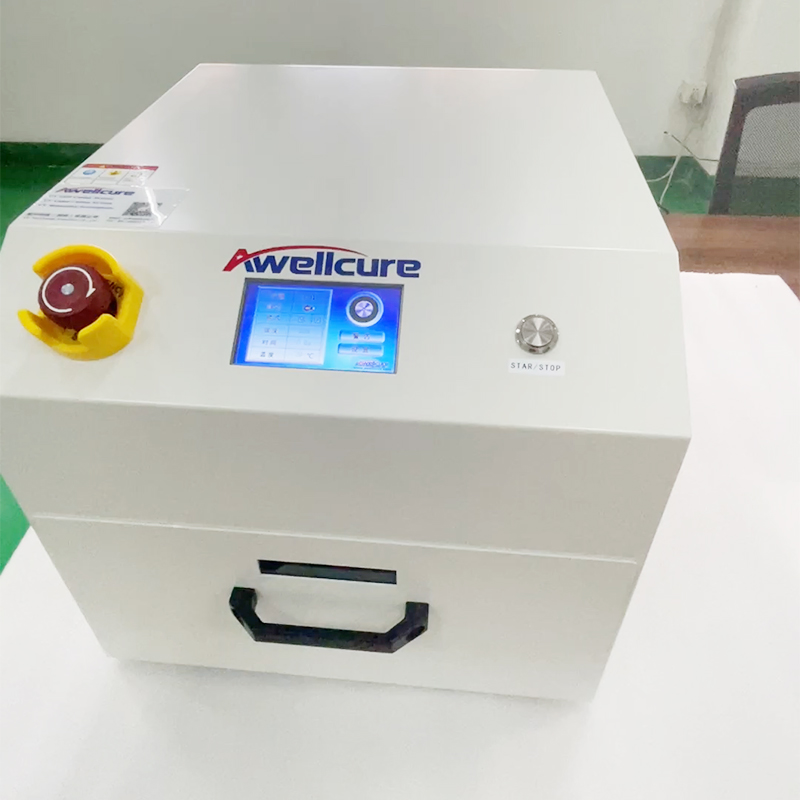

12inch UV Tape Curing Systems with Touch Screen Operation Systems
UV Tape UV curing Systems can reduce the stickness of the UV film/UV tape, which facilitates the next step in the wafer process. To this end, we provide wafer ring related process equipment and accessories. For example, manual wafer mounter, automatic wafer expansion machine, UV tape uv curing systems, UV film/ blue film/UV tape, wafer iron ring, etc.
Product name: Wafer Film UV Curing Systems
Product model: AWM1-JJ02
Product Details:
12inch Wafer Film UV Curing Systems is widely used in degumming wafers, like silicon wafers, glass and semiconductor components. Perfect match with the sealing field of the cutting, grinding, thinning process.
"border=1"
|
Model |
AWM1-JJ02 |
||
|
Outside Dimension |
L400*W400*H360mm |
Capacity of the drawer |
L380mm*W380mm*H7mm |
|
Cool method |
Air cooled |
Input power |
100-240V AC 50-60HZ |
|
Total power |
2000W |
Wavelength |
SVC UV LED 365nm |
|
Compatibility size |
10" and 12" |
Illuminance |
>600mW/cm² |
|
Display/language |
Touch screen English |
Function |
Adjustable time and illumination |
|
Material/Weight |
White sheet metal/bare metal 55kg including 60kg wooden case |
Irradiation direction |
To the bottom up |
Advantages of UV LEDs
1. Adopt imported SVC UVLED lights, scientific array arrangement, the uniformity of 95%.
2. When the degumming is finished, there will be a hint light. Red: A fault occurs. Yellow: Waiting to run. Green: It is running.
3. Touch screen operating system, easy to operate.
4. Compatible with multiple size of wafer iron rings. The 12 inch UV Wafer Tape Curing Systems is compatible with 6/8/12 inch wafers and small sizes. Support the cutting process of degumming, grinding degumming, thinning degumming.
Application
UV Tape Curing: While dicing and back grinding a wafer, exposure to UV light helps in tape bonding reduction which simplifies chip picking.
High Adaptability: Treated UV dicing tapes are applicable to semiconductor wafers, glass, ceramics, and a number of other materials.
Greater Process Productivity: Enhanced response speeds and improved suprachronic recovery combined with system-wide hold time reductions improve productivity.
Contact Awellcure for UV LED Systems
Awellcure UV has the latest technology and used highest quality materials to manufacture UV LED curing devices that meet your application needs. We have the expertise and experience to provide the highest quality LED UV curing system.
To learn more about our LED UV curing technology, please contact us.
