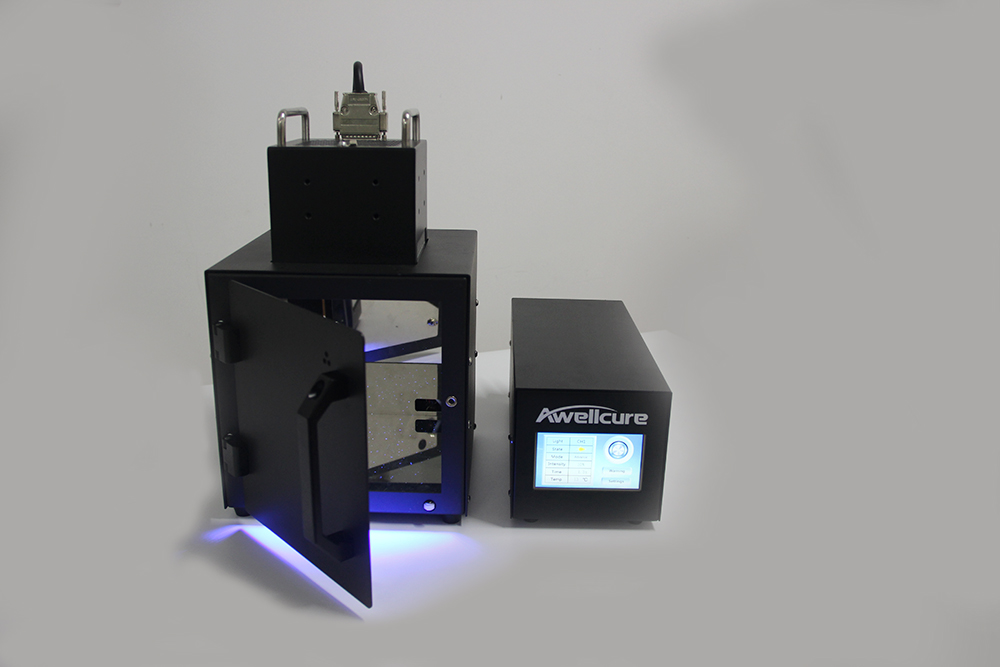

UV LED curing oven
Product model: AO180180
Type selection: Controller + Irradiator Head+ cabinet (irradiation head 100mm*100mm, different wavelength and curing sizes of light sources can be customized)
Features of Controller
• The external input signal controls the UV irradiation, and the control parameters are set through the external devices of MCU, PLC and scanner;
• Various working status LEDs (start, stop, working, alarm) have signal output;
• RS232 interface, for programming operating parameters, for operation with PLC or PC As a device, it is used to transmit a sequence of programs or to download updates for operating software;
• Direct lighting control via foot switch/sensor connection terminal;
Advantages of UV LEDs
• LED head will not produce infrared radiation, so it has better application for low temperature materials;
• Different spectra can ensure safe and fast curing;
• The LED does not require a warm‐up phase, and can instantly turn on and off the LED head;
| Controller specifications | |
| Voltage | 100-240V AC; 50-6 |
| Material | Sheet metal black |
| Controller Method |
Touch/Pedal/RS232 Port/PLC |
| Irradiation Power adjustable range | 10%~100%mW |
|
Irradiation Mode |
Manual (Touch/Pedal/RS232 Port) |
|
Automatic (Set the irradition time 0.1-999.9S) |
|
|
ladder (Different irradiation power and time, achieve step illumination (1-20 Step number) |
|
|
Pulse (Cycle ladder Single/Infinite) |
|
|
Communication Control |
RS232 Serial Port, can realize read and write communication |
| I/O Interface, can realize read and write communication | |
|
Working Temp. |
0-45℃ |
|
Preservation of Ambient Temp. Humidity |
-10-60℃
30-85RH |
| UV Oven specifications | |
| Material | Sheet metal black |
| Outer Size | L230mm*W230mm*H230mm |
| Inner Size | L210mm*W190mm*H180mm (Opening size W*H: 180*180mm) |
| Net Weight | 6.5kg |
|
Funtction |
Close the door--- Light on: Alarm ---Open the door while light is on. The lighting time can be set. |
|
Cooling Method |
Fan |
|
Working Temp. |
0-45℃ |
|
Preservation of Ambient Temp. Humidity |
-10-60℃
30-85RH
|
Irradiation Head specifications
|
LED Type |
Imported |
| UV LED Usage Time |
20000Hrs @80% power |
|
Heat Dissipation Method |
Fan |
| Wavelength Range | 365nm/385nm/395nm/405nm(±5） |
|
Luminous Size |
100-100mm |
| Recommend Distance Range | 10mm |
| Peak Irradiation Intensity | 750/1500/2500/3500 mw/cm^2@10mm |
|
Working Temp. |
0-45℃ |
|
Preservation of Ambient Temp. Humidity |
-10-60℃
30-85RH |
| Power Cord | Standard 2M |
|
Connecting Cable |
Standard 2M or Customized Length |
Application
UV LED Systems are mainly used in Microeletronic industry, Optical Industry, Optical Fiber Communication, Medical Industry, Industrial adhesives and coatings, packaging or label surface ink drying, home industry flooring and furniture varnish curing.
Contact Awellcure for UV LED Systems
Awellcure UV has the latest technology and used highest quality materials to manufacture UV LED curing devices that meet your application needs. We have the expertise and experience to provide the highest quality LED UV curing system.
To learn more about our LED UV curing technology, please contact us.
