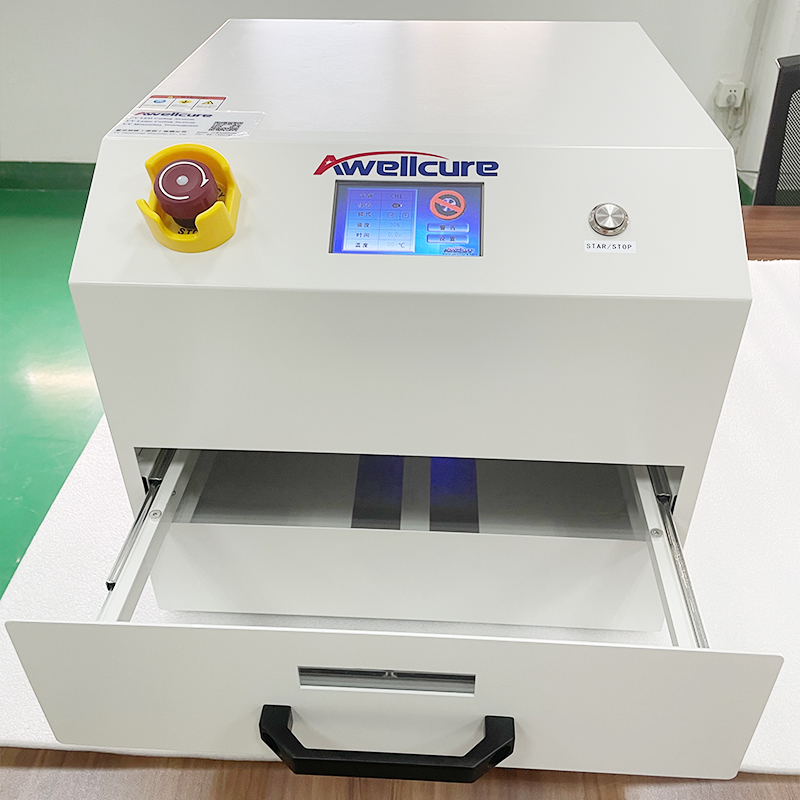

Standard 8 inch UV Tape UV Curing Systems for Wafer Semiconductor
Standard 8inch Wafer Processing Systems is widely used in semiconductor industry. It is often used to reduce the viscosity of the UV film/tape and facilitate the next operation of the wafer.
Product name: Wafer Film UV Curing Systems
Product model: AWM1-JJ01
Product Details:
8inch Wafer Film UV Curing Systems is widely used in degumming wafers, like silicon wafers, glass and semiconductor components. Perfect match with the sealing field of the cutting, grinding, thinning process.
|
Model |
AWM1-JJ01 |
||
|
Outside Dimension |
L400*W400*H360mm |
Irradiating Size |
260x260mm |
|
Cool method |
Air cooled |
Input power |
100-240V AC 50-60HZ |
|
Total power |
1000W |
Wavelength |
SVC UV LED 365nm |
|
Compatibility size |
6" and 8" |
Illuminance |
>600mW/cm² |
|
Display/language |
Touch screen English |
Function |
Adjustable time and illumination |
|
Material/Weight |
White sheet metal/40kg including 55kg wooden case |
Irradiation direction |
To the bottom up |
Advantages of UV LEDs
1.Small body, suitable for 4/6/8 inch chip irradiation.
2.Time and brightness adjustable, touch screen operation, simple and convenient.
3.Bottom up irradiation for easy placement of wafers.
4.LED clod light source, environmental protection products, with low temperature, uniform exposure, compact structure, low energy consumption, is the ideal type of semiconductor industry, and low temperature no damage to thermal sensitive materials.
5.Its service life is 10 times longer than that of ordinary mercury lamp. Its continuous service life is 20000h.
6.Zero maintenance cost, long-term work without replacement of lighting source parts.
7.Enclosed light source design, no ultraviolet side leakage, no damage to human body.
Application
UV Tape Curing: While dicing and back grinding a wafer, exposure to UV light helps in tape bonding reduction which simplifies chip picking.
High Adaptability: Treated UV dicing tapes are applicable to semiconductor wafers, glass, ceramics, and a number of other materials.
Greater Process Productivity: Enhanced response speeds and improved suprachronic recovery combined with system-wide hold time reductions improve productivity.
Contact Awellcure for UV LED Systems
Awellcure UV has the latest technology and used highest quality materials to manufacture UV LED curing devices that meet your application needs. We have the expertise and experience to provide the highest quality LED UV curing system.
To learn more about our LED UV curing technology, please contact us.
Email：uv@awellcure.com
