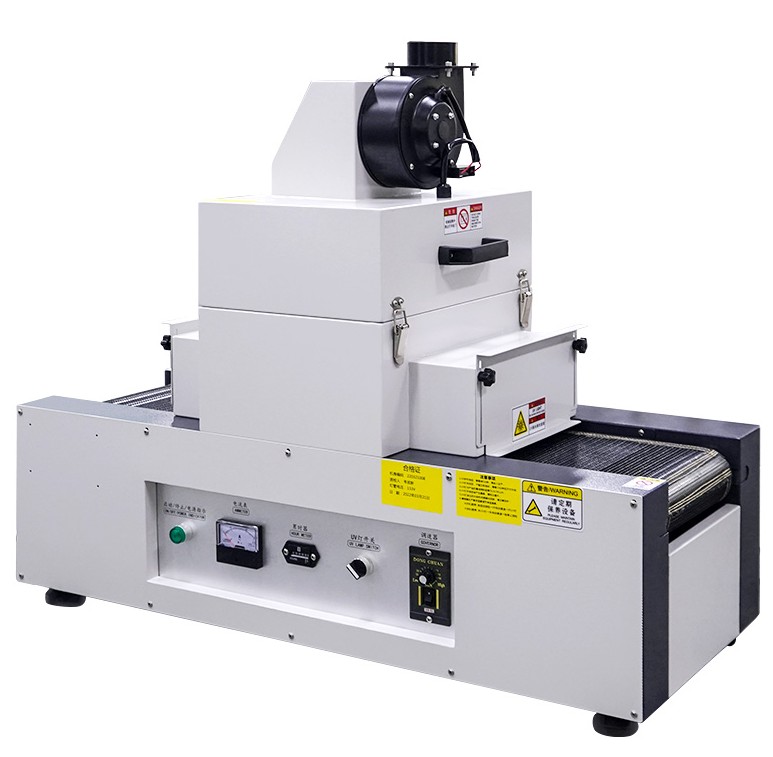

UV Curing Conveyor System With 400mm Belt Width
Product Description
This 400mm Desktop UV Curing Conveyor System is a High-Intensity Curing System designed for benchtops and temporal working stations, equipped with a 3KW mercury bulbs.
Applications:
Awellcure's uv curing conveyor can be used for UV glue, ink, varnish, paint, coating and other photosensitive materials curing role, specific applications can be referred to the following:
Optical communication industry
Photovoltaic new energy
Medical devices, 3C electronics
PCB circuit board
Optical parts
Liquid crystal display
Laboratory materials
Product model: AWM1-ZM10040
Specification Parameter
Model | AWM1-ZM10040 |

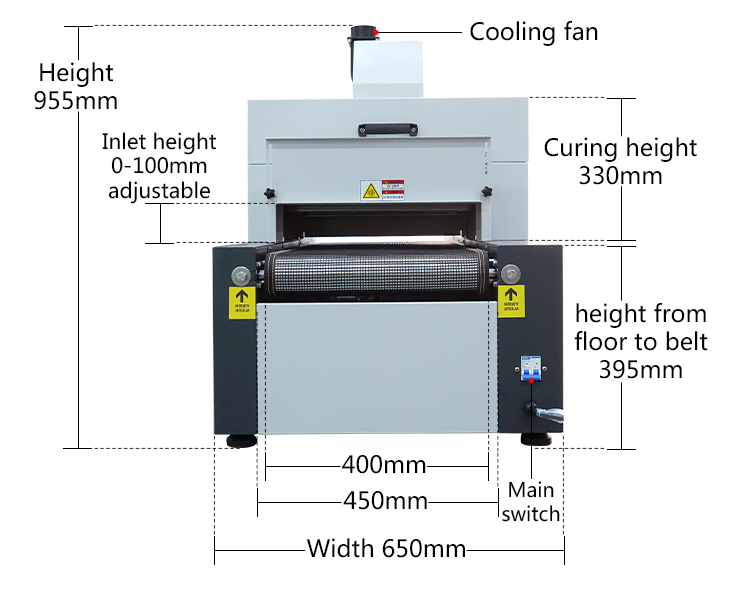

UV machine external dimensions (mm) | L1900-W650-H955 |
Conveyor Material | Sheet metal white |

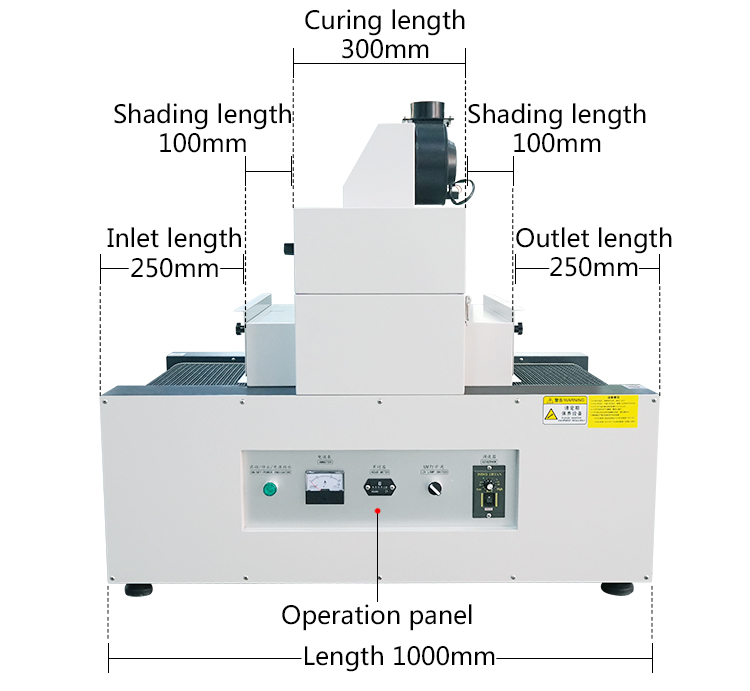

Mesh Belt Material/Dimensions (mm) | Teflon/L1000*W400mm |
Inlet For Material(mm) | Width 400,Height 0~100(Adjustable) |
Transmission speed | 1-10m/min (Promise adjustable) |
Light Source | 1pc 3KW UV Lamp |
Emergency Stop Switch(Belt) | Yes |
Wavelength(nm) | 200-450nm(Peak Wavelength 365nm) |
| UV Exposure Intensity | 80W/CM |
Heat Dissipation | Fan-cooled |
Lamp Bead Life | ≥20000H |
Power Supply Voltage | AC220V (50/60HZ) |
Power Consumption | 3.2W |
Net Weight/Conveyor | 160kg |
Ambient Temperature | -10℃ - 50℃ |
Relative Humidity | 25% - 80%RH |
